LCD COG顯示器和LCD COB顯示器有什麼優勢？

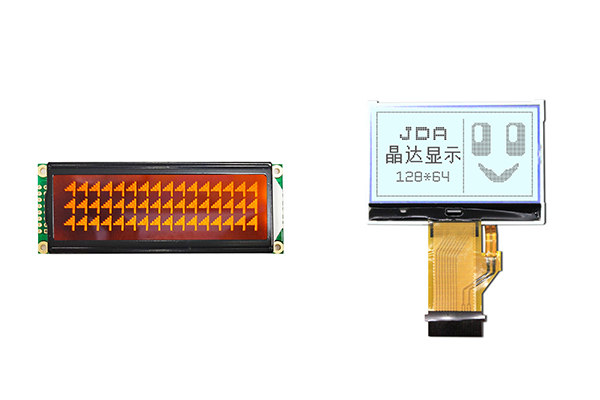

As electronic devices continue to become smaller, smarter, and more energy-efficient, display technologies must evolve to meet the growing demands of modern applications. Among the most widely used monochrome LCD technologies are COG display (Chip On Glass) and COB display (Chip On Board). Both technologies have established themselves as reliable solutions in industrial, medical, consumer, and smart device applications. As a professional 液晶顯示器製造商，晶達顯示在COG顯示器和COB顯示器客製化方面擁有豐富的製造經驗，為全球多個產業客戶提供高可靠性的顯示器產品。

什麼是LCD COG顯示器？

A COG display (Chip On Glass) is an LCD module in which the driver IC is directly bonded onto the glass substrate of the LCD panel. This eliminates the need for a separate PCB to mount the controller chip. The technology allows for a more compact design while reducing the number of components used in the display assembly.

COG顯示器的結構，典型的COG顯示器包括：

1.液晶玻璃面板

2.驅動IC直接安裝在玻璃上

3.柔性印刷電路（FPC）

4.偏光鏡

5.背光系統（可選）

由於控制器直接整合在玻璃上，整個模組變得更薄、更輕、更緊湊。

的優點重心顯示

1.COG顯示器憑藉其超薄設計、高穩定性、優異的顯示性能以及長期量產成本優勢，成為高階緊湊型電子產品的首選解決方案。晶達顯示器優化了COG顯示器的ACF鍵合製程和金線對位技術，進一步提高了產品的良率和環境適應性，使COG顯示器在高精度顯示場景中更具競爭力。

2.The biggest core advantage of COG display is its highly integrated structure. By directly attaching the IC chip to the glass substrate, it removes the stacked structure of PCB boards and connectors, greatly reducing the overall thickness and border width of the display module. Compared with traditional COB display modules, the thickness of COG display can be reduced by 30%–50%, and the narrow bezel design can be realized on the peripheral of the screen, which effectively improves the screen-to-body ratio of terminal equipment. This advantage is irreplaceable for portable and miniaturized electronic products with strict space size limits.

3.The signal transmission path of COG display is extremely short. The driver IC is directly connected to the glass electrode, avoiding signal attenuation, delay, and electromagnetic interference caused by long-distance transmission of PCB circuits and flexible cables. This enables COG display to present more uniform screen brightness, higher color reduction accuracy, and clearer image details. Especially for high-resolution small-size LCD screens, COG packaging effectively eliminates display problems such as ghosting, color cast, and blurred edges. In addition, the integrated structure of COG display reduces mechanical connection points and soldering points, greatly lowering the failure rate of poor contact caused by vibration, temperature change, and mechanical friction, and significantly improving the long-term working stability of the display.

什麼是COB顯示器？

LCD COB display, namely Chip on Board display, is a traditional and mature packaging process. Its core feature is mounting the driver IC chip on a dedicated PCB circuit board, completing circuit conduction through soldering and encapsulation, and then connecting the PCB board with the LCD glass screen via flexible connectors. A COB display (Chip On Board) refers to an LCD module where the driver IC is mounted directly onto a printed circuit board (PCB) and protected with epoxy resin. COB technology has been used in the LCD industry for decades and remains a highly reliable solution.

COG液晶顯示器的優點

1.區別於COG顯示器的高精度、超薄定位，LCD COB顯示器憑藉其製程簡單、擴展性強、維護方便、小批量定製成本低等特點，在工業控制、家用電器、大尺寸顯示設備中佔據著不可替代的地位。是針對中低端顯示場景和非空間限制設備的高性價比、高適應性的顯示封裝解決方案。

2.The production process of LCD COB display is mature and simple, with low requirements for production equipment and process technology. The IC chip is mounted on the PCB board through traditional soldering and encapsulation technology, and the later circuit modification and parameter debugging are more flexible. For small-batch customized display products and prototype development stages of new products, COB display can quickly complete sample production and scheme adjustment, with a short delivery cycle and low debugging cost.

3.The PCB board structure of COB display can be expanded freely according to product requirements, which is convenient for integrating more functional circuits such as touch control, backlight adjustment, and signal switching on the board. It has strong compatibility with multi-functional and large-size display modules. In terms of heat dissipation, the PCB substrate has a larger heat dissipation area and better heat conduction performance.

為什麼選擇晶達顯示？

晶達顯示器是一家值得信賴的液晶顯示器製造商，專注於為全球客戶量身定制顯示解決方案。

與晶達顯示合作的優點包括：

1.10年以上LCD製造經驗

2.專業的工程支持

3.客製化COG顯示器開發

4.客製化COB顯示解決方案

5.快速原型製作服務

6.有競爭力的工廠定價。

7.嚴格的品質管制

8.全球技術支持

無論客戶需要用於智慧型裝置的緊湊型COG顯示屏，還是用於工業應用的堅固耐用的COB顯示屏，晶達顯示都能根據特定項目要求提供可靠且經濟高效的解決方案。
