電阻式觸控螢幕和電容式觸控螢幕有什麼差別？

In today's digital world, touch screens have permeated every aspect of our lives, ranging from the smartphones in our pockets to the industrial control equipment in factory workshops. Compared to regular LCD displays, TFT LCD Screen can provide very clear images and text and has a shorter response time. The increasing application of TFT LCD displays has brought better visual effects to products. For the TFT顯示模組觸控方式有兩種：電阻式觸控螢幕和電容式觸控螢幕。

什麼是電阻式觸控螢幕？

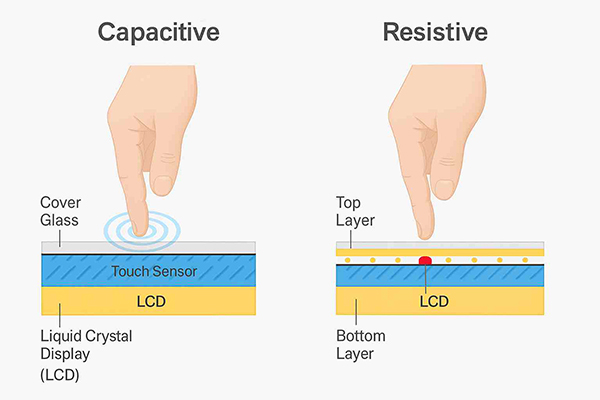

Two layers of conductive ITO films, with tiny insulating points in between, do not touch each other normally; when pressed, the upper and lower films touch each other, forming a conductive circuit. The controller calculates the pressing coordinates based on the XY voltage. Resistive touch screens come in various variants such as four-wire, five-wire, and eight-wire. The numbers represent the number of circuit components connected to the controller. Among them, the four-wire resistive screen is the most common and economical solution, while the five-wire resistive screen provides higher durability and accuracy through the design of a constant voltage at the bottom layer.

電阻式觸控螢幕的典型結構包括：底層由玻璃或有機玻璃基板製成，其上方塗有透明導電層（通常是氧化銦錫ITO），中間層，上層為多層樹脂塗層，外表面經過硬化處理。

什麼是電容式觸控螢幕？

The surface layer of the screen has a conductive ITO capacitor layer. The human body has a weak biological current. When a finger touches it, the human body and the screen electrodes form a coupling capacitor. The four corner electrodes capture the current difference to calculate the touch point.

電容式觸控螢幕的基本結構由四層複合玻璃面板組成。最外層為化學或物理強化防護玻璃（硬度為6H、7H、8H或以上），玻璃內表面及夾層均鍍有ITO導電層。

主要特性比較表

電阻螢幕的優點

1.可以被任何物件操作。適用於有防護手套或橡膠手套的工業場景。

2、極高的定位精度，適用於收銀機、工業設備、繪圖儀器等。

3.不怕潮濕或輕微水蒸氣。戶外工業設備的首選。

4.價格低廉，驅動簡單，耗電量低。

電阻屏的缺點

1.需用力按壓，操作體驗較差

2.薄膜表面容易出現刮痕，長期受壓會故障

3.不支援多指手勢，無法放大縮小

4.透光性差，導致螢幕外觀模糊

電容式觸控螢幕的優點

1. 觸控操作流暢，手感愉悅，支援多點手勢

2.防刮強化玻璃表面，堅固耐用，耐刮擦

3.透明顯示屏，色感更好

4.無實體擠壓磨損，家用數位設備壽命更長

電容屏的缺點

1. 只能徒手或專用電容筆使用。普通手套無法使用。

2. 水或冷凝會導致不穩定的運動和意外觸摸。

3.低溫和厚厚的油污會明顯降低靈敏度。

4.在潮濕的工業環境中成本更高且不穩定。

應用領域

電阻式觸控螢幕的典型應用

電阻式觸控螢幕以其成本低、輸入靈活、抗干擾能力強等特點，仍是以下場景的首選：

工控設備：工廠環境容易受到灰塵、油污和電磁幹擾，操作人員常戴上手套。

POS收銀系統：需筆簽名並戴上手套操作

醫療設備：可靠性和衛生清潔度要求高

汽車導航系統：駕駛者可以戴手套操作

公共查詢終端：如自助取票機、ATM機等。

戶外設備：暴露於灰塵、潮濕等惡劣環境的設備

電容式觸控螢幕的典型應用

電容式觸控螢幕憑藉多點觸控、靈敏度高、顯示品質優異等優勢，主導以下場景：

智慧型手機和平板電腦：需要流暢的手勢操作和多點觸控體驗

消費性電子：智慧家電、穿戴式裝置

高階人機介面：需要現代互動體驗的設備

醫療設備：需要快速直覺輸入的場景

觸控顯示器：對顯示效果要求較高的應用

未來發展趨勢

電容式觸控螢幕憑藉其多點觸控、高靈敏度和出色的顯示效果，已成為消費性電子市場的主流技術。然而，電阻式觸控螢幕在工業控制、醫療設備、公共設施等特定領域仍保持著不可替代的地位。

In recent years, technological development has shown a trend of integration and optimization. Industrial-grade capacitive TFT display are gradually overcoming traditional shortcomings such as electromagnetic interference, water mist and glove operation through self-developed touch control algorithms and scenario-based optimization. At the same time, resistive TFT screens are also improving durability and accuracy through material and process improvements.
