1.28吋圓形旋鈕屏UART HMI顯示屏

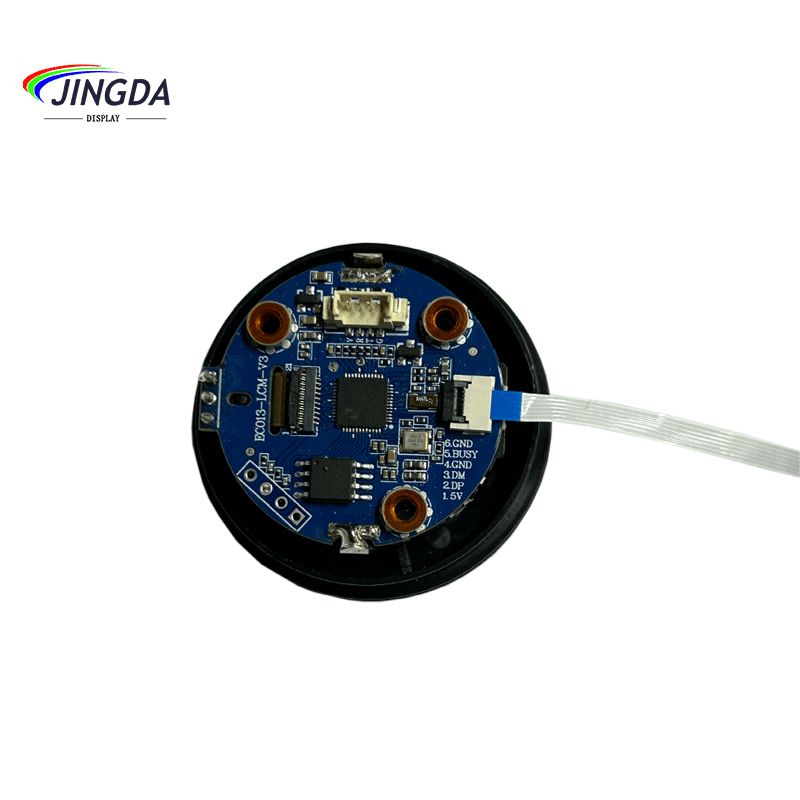

JINGDA-DISPLAY as a professional manufacturer of LCD displays, TFT displays and OELD displays for many years in Shenzhen. JDA independently develop a NEW TFT product that is 1.28 inch round circular knob screen UART HMI display. The 1.28-inch UART HMI display knob screen is a compact and highly integrated solution that integrates display, touch control, and serial communication.

發送詢問

產品描述

1.28吋圓形旋鈕螢幕UART HMI參數顯示

尺寸	1.28英寸	解決	240x240
模組尺寸	47.5（長/寬）x30.28（高）毫米	方法	TTL串口
工作溫度	-20至70℃	儲存溫度	-30至80℃

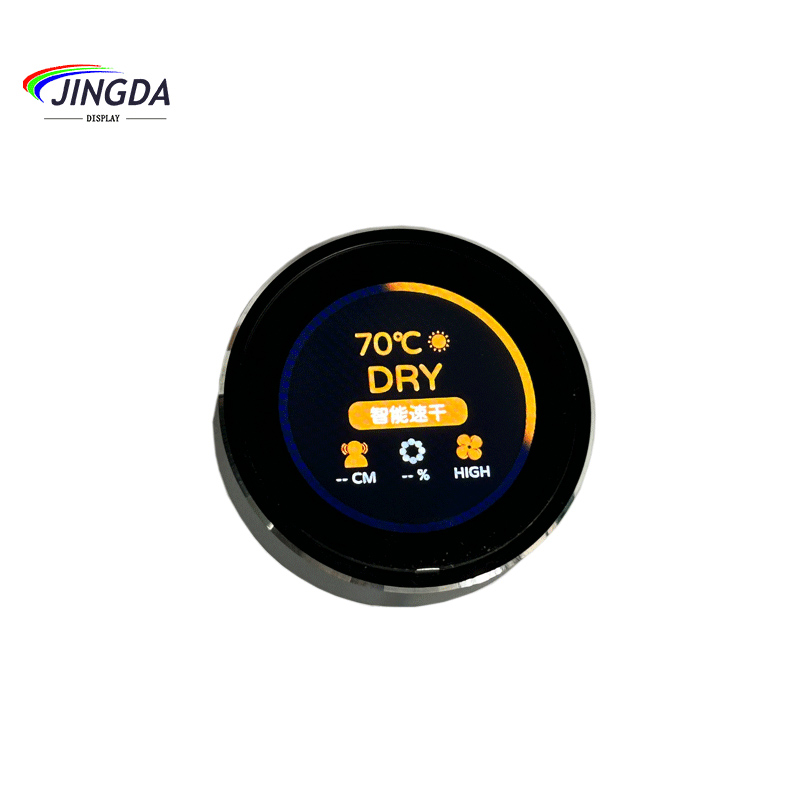

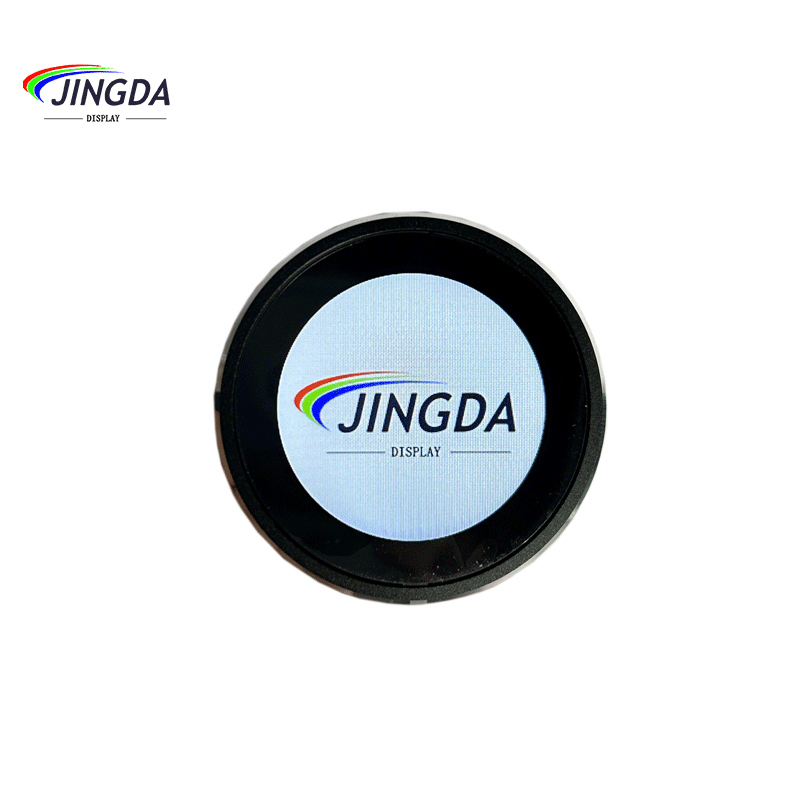

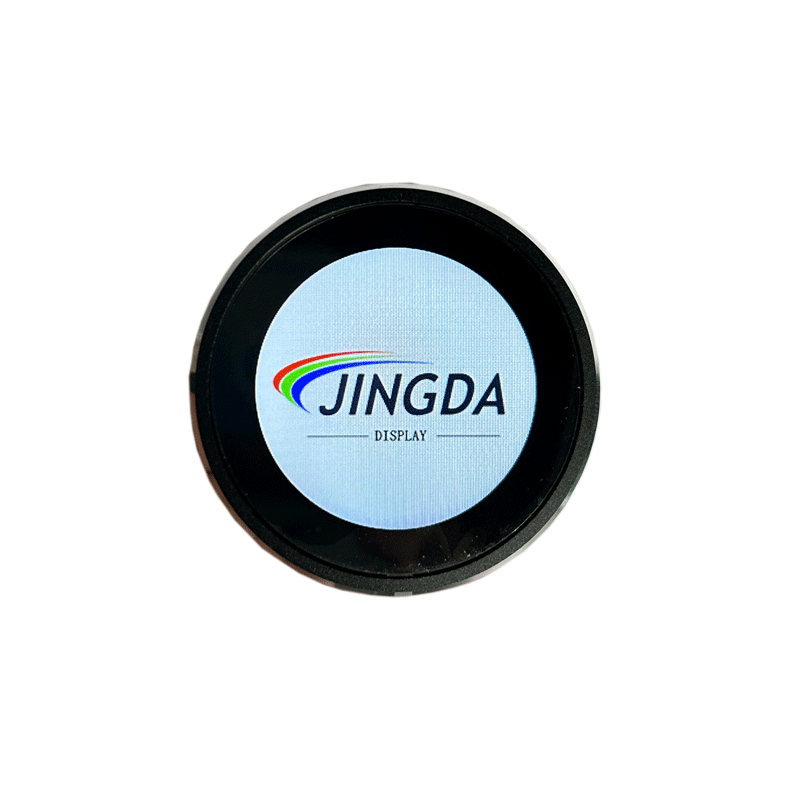

圓形圓形旋鈕螢幕UART HMI顯示器產品介紹

Knob screen is a new type of human-computer interaction interface that deeply combines physical knobs with a touch screen display. It is not simply hardware or software, but a solution that tightly integrates hardware and UI design. The communication method used by this screen is TTL UART.

旋鈕顯示的主要特點

1.28吋圓形UART HMI顯示器的核心價值在於其極低的整合度和開發門檻，為需要小型、精緻、互動介面的產品提供了「即插即用」的解決方案。

1. 精準高效率的操作：旋轉旋鈕進行連續調整（如音量、溫度），相較於在螢幕上滑動，手感更好、更精準。

2.優秀的互動回饋：提供清晰的確認回饋，提升操作品質。

3. 簡潔的介面：透過螢幕定義的一個旋鈕可以實現多種功能，使控制區域變得簡單，同時提供無限的功能。

4.科技與品質：機械質感與數位螢幕的科技感完美融合，提升了產品的整體風格。

圓形旋鈕螢幕的應用

旋鈕螢幕主要用於智慧家庭和消費性電子領域。

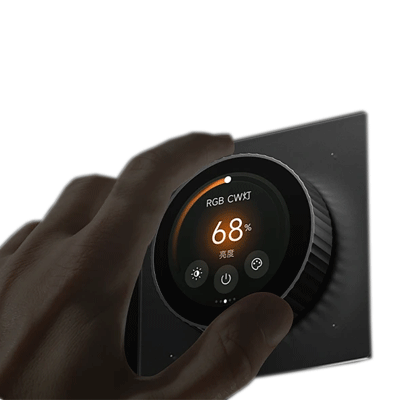

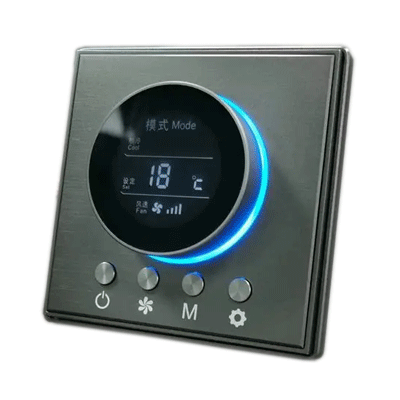

For example Intelligent switch panel: replaces traditional switches to achieve scene control, temperature and humidity display, etc. Small household appliances: interactive interfaces for high-end coffee machines, air purifiers, humidifiers. As shown picture below:

晶達顯示公司簡介

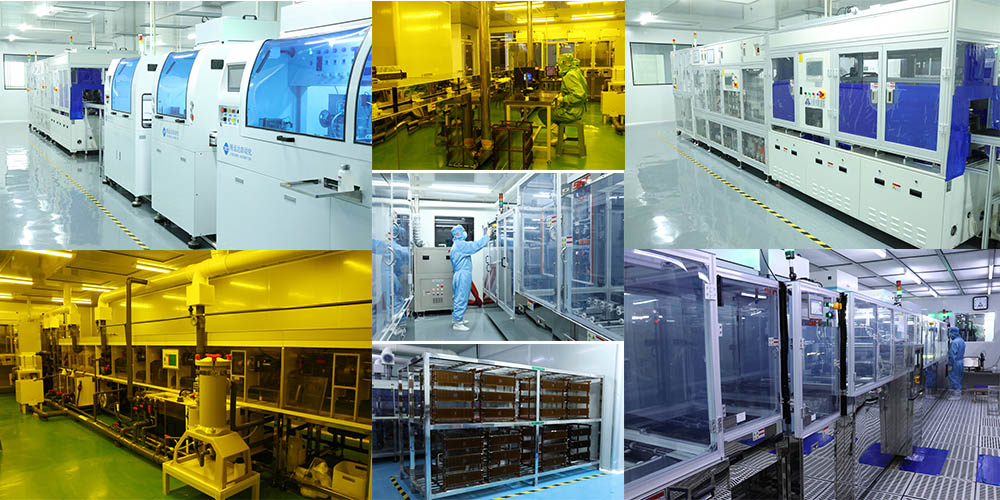

Shenzhen Jingda Display Technology Co., Ltd(JDA in brief). JDA company is a professional segment LCD display manufacturer and supplier in Shenzhen, China. JDA has been focusing on the monochrome LCD display field for 10+ years. JDA’s LCD display products have the advantage of high cost-effectiveness and can provide a good LCD solution for clients. With innovation at its core, the company is committed to providing customers with high-performance and reliable display solutions. There are 6000㎡ dust-free workshop, including Hundred-level clean workshop and Thousand-grade clean workshop. It provides a stable and reliable environment for the production of high-quality LCD display products.
