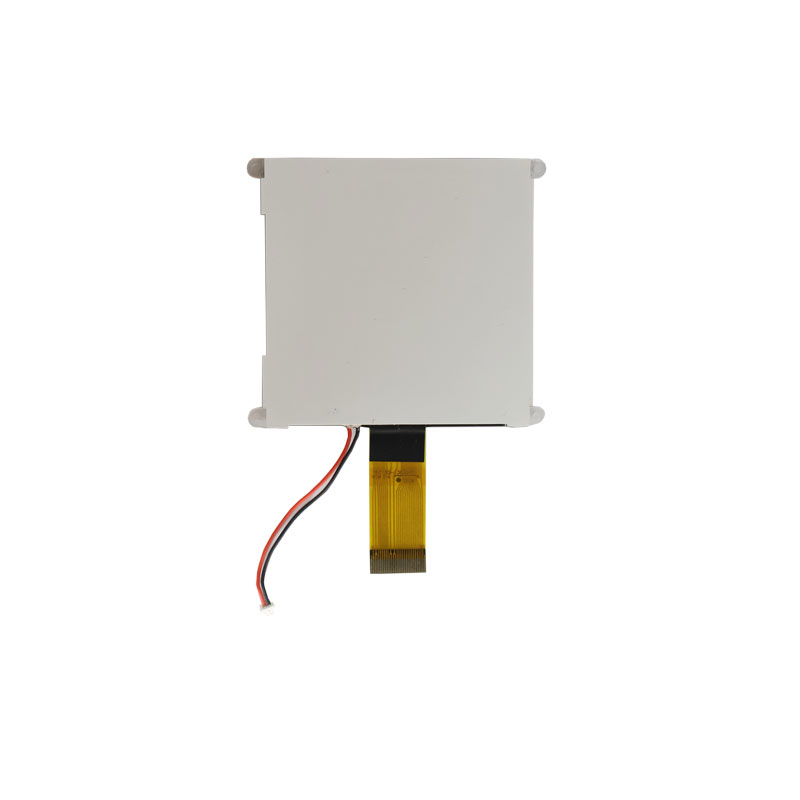

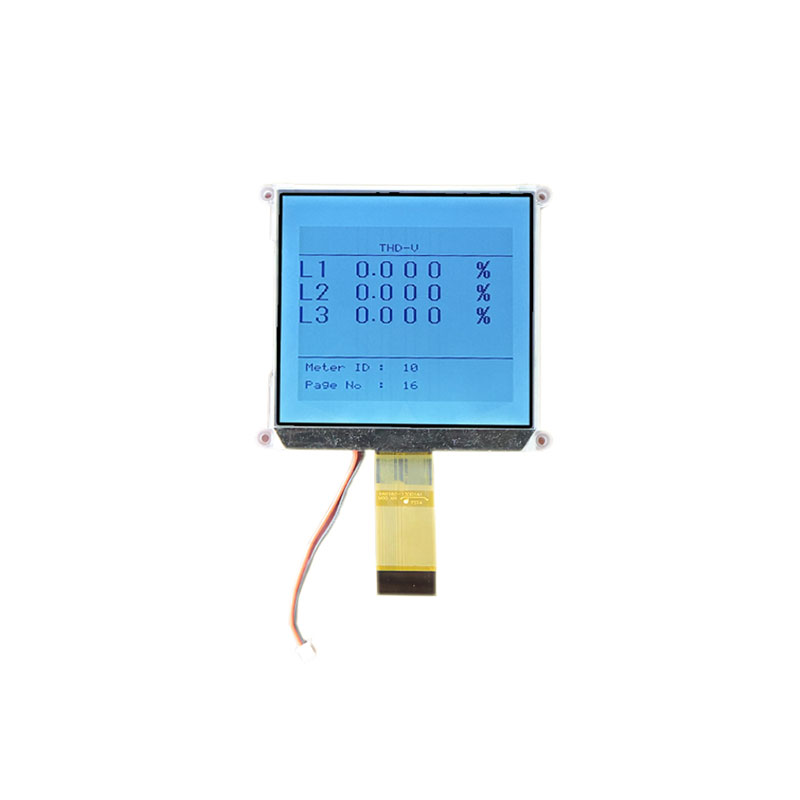

160×160 單色顯示器圖形 FSTN LCD 顯示屏

JDA’s graphic LCD display modules offer long life and high reliability, suitable for continuous industrial and commercial use. JDA is typically equipped with backlighting, ensuring good visibility even in low-light environments. Customizable options like backlight color, screen size, viewing angle, and operating temperature range meet specific project requirements wide interface compatibility 160×160 monochrome display graphic FSTN LCD display white backlight.
模組編號：JDA160160-24333A1
驅動晶片：UC1698
工作溫度：-20至70℃
視角：廣視角
可視面積：67.3*56.6

發送詢問

產品描述

160160單色顯示屏圖文FSTN液晶顯示器產品參數

液晶螢幕尺寸	70.3(長)×70.8(寬)×5(高)毫米	顯示方式	1/160 工作，1/10 平衡
查看區域	67.3(長)*56.6(寬)	工作溫度	-20至70℃
液晶螢幕類型	FSTN	儲存溫度	-30至80℃
查看方向	6點鐘	背光	白色的
驅動IC	UC1698	顯示電壓	電源電壓=3.3V

160160 單色顯示圖形 FSTN 液晶顯示器產品介紹

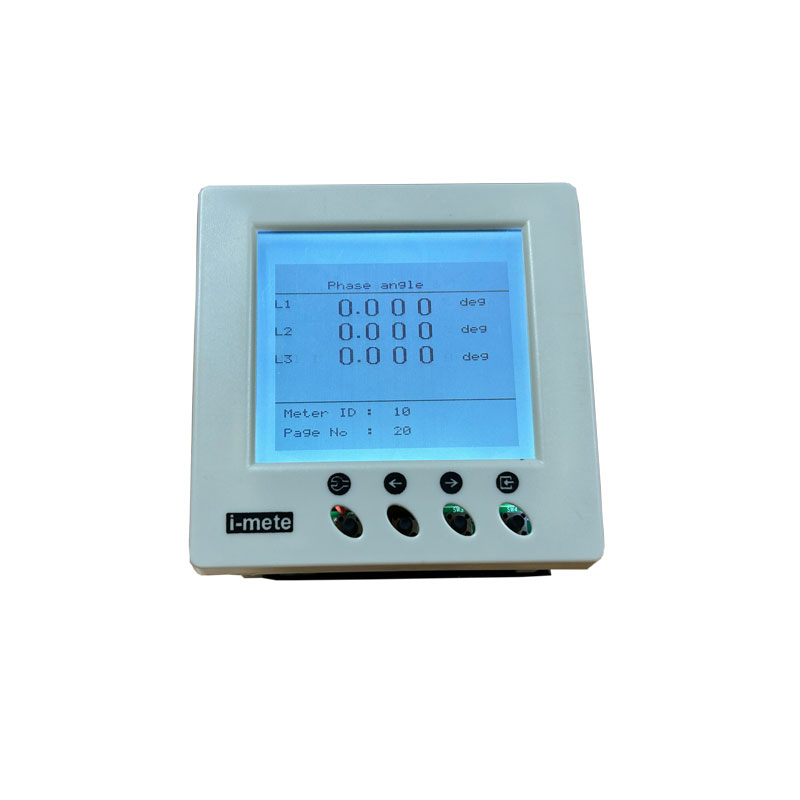

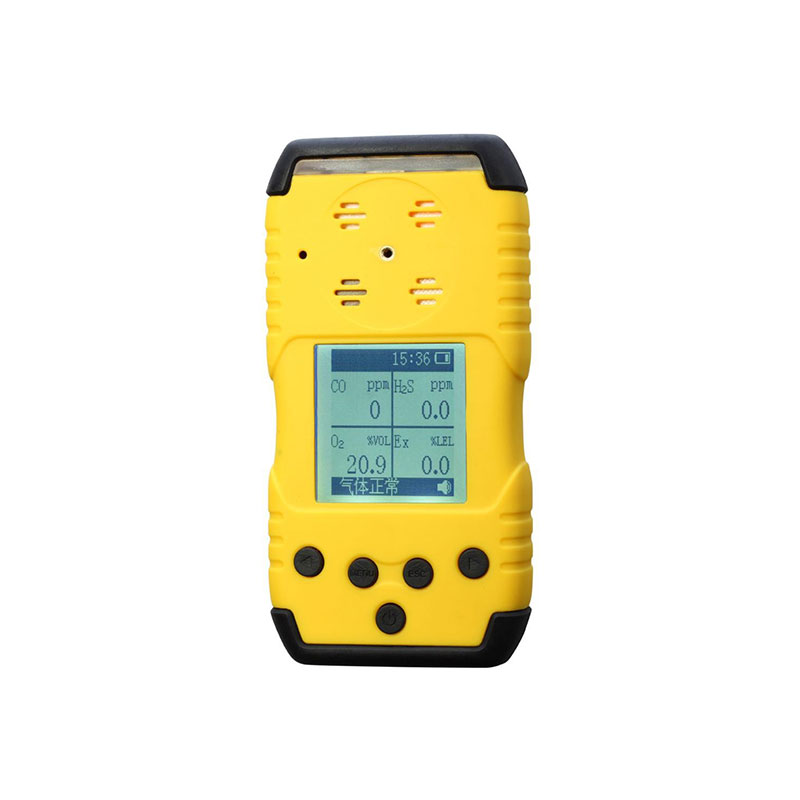

JINGDA-DISPLAY is China manufacturer and supplier who mainly produces 160×160 Monochrome Display Graphic FSTN LCD Display with many years of experience. The graphic LCD display of JDA160160-24333A1 module offers wide interface compatibility, including parallel, serial, and SPI protocols for easy communication with MCUs. And the drive IC of JDA160160-24333A1 is UC1698. The LCD display module is suitable for monitors, portable device, electricity meter, analytical instrument etc. The JDA160160-24333A1 module is of a customer-specific size, which is compatible with the size of the customer's electricity meter.

應用領域

公司簡介

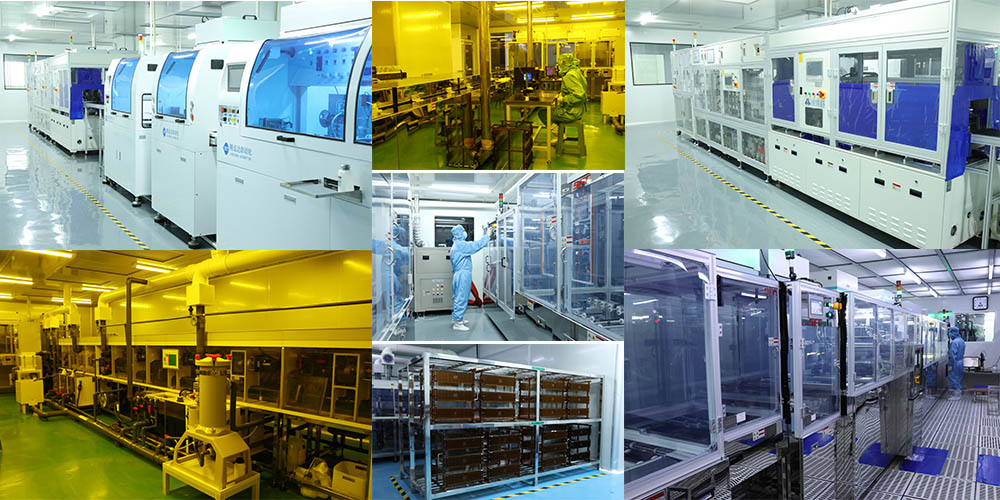

Shenzhen Jingda Display Technology Co., Ltd(JDA) is a professional manufacturer of monochrome LCD display, TFT display, OLED display and HMI solution in China. JDA has own factory in Fujian Province, it is more than 10,000㎡ and 6000㎡ dustless workshop was established in 2018.There are 450 employees, include 45 R&D engineers and 50 QC engineers. JDA owns more than 30 Production lines, including automatic LCD line, LCM, OCB, COG, TFT, TAB and SMT, monthly production is more than 20,000,000 pcs products.
