OLED顯示器簡介
什麼是OLED顯示器？
OLED is an organic light-emitting diode, also known as Organic Electroluminescence Display (OLED). Due to its unique features such as self-illumination, no need for a backlight, high contrast ratio, thin thickness, wide viewing angle, fast response speed, suitability for flexible panels, wide operating temperature range, and simpler structure and manufacturing process, OLED offers much better image quality. It has higher contrast (also known as HDR high dynamic range) and a wider viewing angle, making it an ideal choice for high-end electronic products.
OLED顯示器的分類
1.按駕駛方式分類
被動式OLED（PM-OLED）：結構簡單，適合小尺寸、低資訊密度的顯示場景；
主動式OLED（AM-OLED）：每像素均配備獨立的薄膜電晶體（TFT）進行控制，響應速度更快，功耗更低，能夠實現更高解析度。是智慧型手機、電視等主流產品的技術選擇。
2、依著色技術分類
RGB OLED：紅、綠、藍三原色像素獨立發光，提供最佳的色彩表現力和對比。但製造難度和成本較高，主要應用於小尺寸顯示器；
WOLED：利用白色發光層與彩色濾光片結合，以實現全彩顯示。工藝相對簡單，良率高，主要用於大尺寸電視。

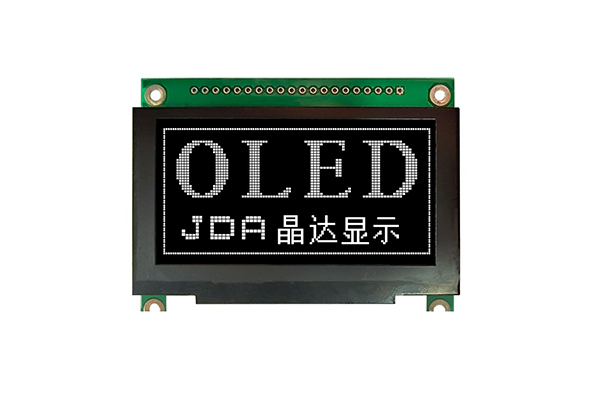

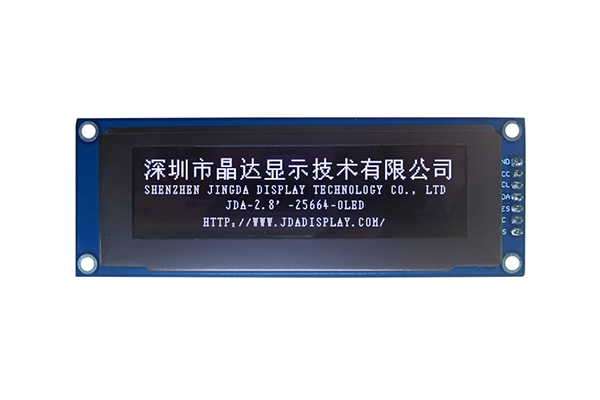

OLED顯示器模組產品特點
1. 出色的視覺表現
對比超過10000:1，色彩飽和度高，文字和圖示邊緣清晰無重影。自發光技術即使在強光或完全黑暗的情況下也能確保出色的可讀性。
2.超低功耗架構
The working voltage is only 3.3V or 5V. The power consumption for full screen illumination is approximately 25mA (depending on the number of illuminated pixels), and the power consumption in standby mode can be as low as the micro-ampere level. Compared to TFT or LCD screens of the same size, the power consumption is reduced by approximately 50%-70%, making it extremely suitable for battery-powered portable devices.
3. 寬溫度範圍和可靠性
The working temperature range covers -40℃ to +85℃, and the storage temperature can reach -40℃ to +85℃. It has excellent weather resistance. The module integrates a boost circuit internally, and only a small amount of peripheral capacitors are required for stable operation, with anti-static capability meeting industrial standards.
4. 靈活的介面配置
提供相容I2C介面和SPI介面的焊盤設計，讓使用者根據主控資源靈活選擇。本模組支援Arduino、STM32、ESP32等主流平台，可直接連接現有開源生態系統，大幅縮短開發週期。
OLED顯示模組的應用
1. 消費性電子產品
OLED顯示器是高階智慧型手機、平板電腦、筆記型電腦和電視的主流顯示解決方案，具有高畫質、寬視角和節能的顯示效果。
2、穿戴式裝置
智慧手錶、健康監測儀等設備充分利用了OLED輕薄、低功耗、靈活適應性等優勢。
3. 車輛展示
OLED廣泛應用於儀表板、中控台、娛樂系統等，適應複雜的車內環境，提供清晰的視覺資訊。
4. VR/AR近眼顯示
矽基OLED（Micro OLED）憑藉其高解析度、快速響應和低延遲等優點，成為擴增實境和虛擬實境裝置的首選螢幕技術。
5.OLED照明
OLED照明面板薄而柔韌，能夠發出均勻柔和的光線。它們被視為下一代照明技術的有力競爭者。
