SPI和IIC介面對於圖形液晶顯示器有什麼優勢？

在現代嵌入式系統設計、工業控制、智慧家庭設備、穿戴式電子產品等領域，圖形液晶顯示模組 have become indispensable human-computer interaction carriers. Among all mainstream display interfaces, SPI and IIC are the two most widely adopted solutions for dot matrix LCD screens, dominating the market of small and medium-sized LCD displays due to their unique structural advantages, stable performance, and excellent compatibility. Selecting a suitable interface for an IIC interface display or SPI display directly determines the equipment’s response speed, power consumption, PCB layout difficulty, and overall service life.

圖形液晶顯示器與段碼液晶螢幕不同，它支援任意像素打點、自訂圖形渲染、動態文字滾動、多層介面顯示，對介面傳輸效率和訊號穩定性提出了更高的要求。相較之下，SPI和IIC串行介面簡化了佈線設計，優化了傳輸協議，完美契合主流終端產品低成本、高穩定、緊湊的設計需求，成為當前主流終端產品的首選接口點陣液晶顯示器.

SPI介面基本特性（SPI顯示）

SPI (Serial Peripheral Interface) is a high-speed synchronous serial communication interface, a master-slave structured full-duplex transmission protocol, and the core mainstream interface of high-performance SPI display products. The standard SPI interface for dot matrix LCD screens adopts a 4-wire structure, including SCLK (clock signal), MOSI (data transmission), CS (chip selection), and DC (data/command selection). Some simplified 3-wire SPI designs integrate DC signals into data lines, further reducing pin count while retaining high-speed transmission capabilities.

IIC介面基本特性（IIC介面展示）

IIC（Inter-Integrated Circuit）是一種超簡化的2線結構的半雙工同步序列匯流排接口，由SCL（時脈線）和SDA（資料線）組成。 IIC匯流排作為多設備匯流排接口，可掛載多個不同位址的顯示模組和感測器設備，這是IIC介面顯示產品在多設備整合系統中的核心優勢。

SPI介面用於SPI圖形液晶顯示器的優點

1.超高傳輸速度，動態顯示無滯後

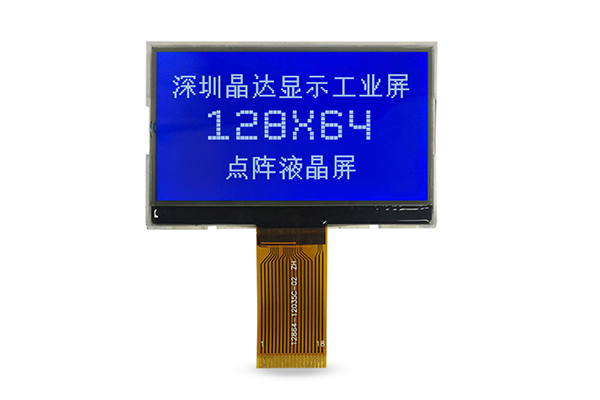

The biggest advantage of SPI interface lies in its ultra-high clock frequency and zero protocol overhead. Different from the IIC interface’s address verification and response waiting mechanism, SPI adopts a continuous burst transmission mode, with a maximum clock frequency of up to 80MHz. For mainstream 128x64, 160x128, 240x320 點陣液晶顯示器，SPI介面可在1-5ms內完成全螢幕資料刷新。

2.抗干擾性能強，適合工業場景

我司帶SPI介面的工業級圖形液晶顯示器採用推挽式驅動訊號輸出，訊號抗干擾能力強，在工業車間、電力設備等高雜訊電磁環境下傳輸穩定。與IIC介面的開漏結構相比，SPI訊號驅動能力更強，有效傳輸距離更遠，且不易出現訊號失真或資料遺失的情況。

3. 靈活的佈線設計，平衡性能和整合度

The standard 4-wire SPI interface and simplified 3-wire SPI interface both maintain a low pin count design, far fewer than traditional parallel LCD interfaces. While retaining high-speed transmission performance, it avoids the problem of excessive GPIO resource occupation. For embedded systems with limited single-chip microcomputer pins but high display performance requirements, SPI display modules can perfectly balance hardware cost and display effect.

4.超低腳位佔用，極大簡化PCB設計

IIC介面只需要兩條訊號線（SCL、SDA）即可完成顯示資料傳輸，是所有主流顯示介面中腳位數最少的。對於GPIO資源極為有限的穿戴式裝置、智慧感測器、微型家電等超小型設備，IIC介面顯示模組可節省大量單晶片引腳，避免因引腳不足而需要擴充週邊晶片。

SPI and IIC interfaces are both core serial transmission solutions for modern dot matrix graphic LCD display products, with their own irreplaceable advantages. SPI display modules rely on high-speed transmission, strong anti-interference, and excellent dynamic display performance, becoming the preferred choice for industrial high-performance and dynamic display scenarios. IIC interface display products take advantage of ultra-simple wiring, low power consumption, and strong expandability, dominating miniaturized, low-power, and multi-device integrated application scenarios.
