什麼是TN液晶顯示器和IPS液晶顯示器？

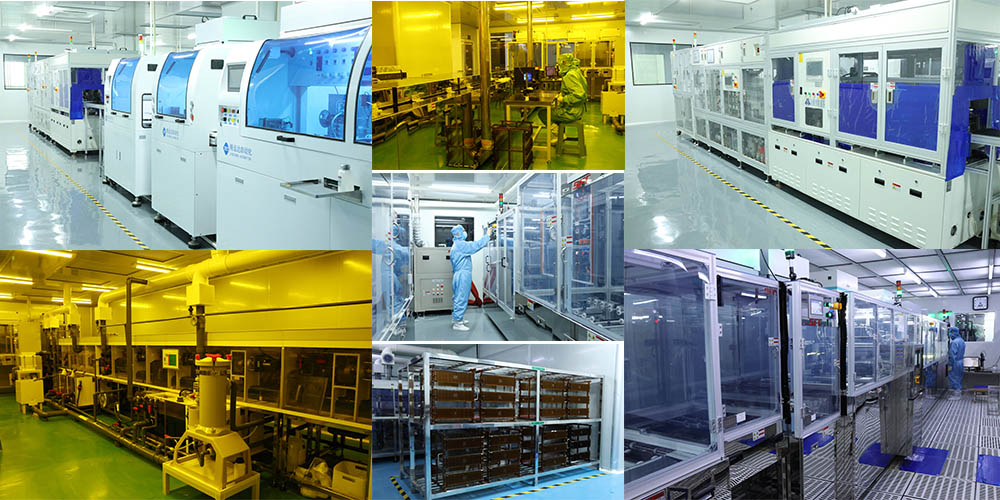

在液晶顯示器領域，TN LCD（扭曲向列液晶螢幕）和IPS LCD（面內開關液晶螢幕）是長期主導市場並支援數千種電子設備運作的兩項核心技術。作為一家擁有10多年經驗的專業液晶製造商，JDA見證了這兩項技術的升級，積累了豐富的研發和生產經驗，為工業控制、消費電子、汽車電子等領域的數百家客戶提供了優質的顯示解決方案。

TN液晶顯示器和IPS液晶顯示器都屬於TFT-LCD（薄膜電晶體液晶顯示器）的範疇，它們是透過控制液晶分子在電場作用下的偏轉來調節光的透過率來實現影像顯示。但由於液晶分子的排列方式和電極結構的設計不同，兩種技術在性能上表現出明顯的差異，這也決定了它們不同的市場定位和應用領域。

什麼是TN液晶屏？

TN technology is the most mature process in the field of LCD display. When not powered on, the liquid crystal molecules in a TN panel are twisted 90 degrees in a spiral shape, and their optical rotation property is utilized to control the passage of the backlight. Its manufacturing process is simple, requiring only the creation of an alignment layer on the upper and lower glass substrates, resulting in extremely low production costs.

From a physical perspective, the response time of a TN panel is extremely fast, typically ranging from 3 to 5 ms or even faster. This is because the twisting resistance of the liquid crystal molecules in the vertical direction is relatively low, enabling rapid response to voltage changes. When an electric field is applied, the liquid crystal molecules will rotate along the direction of the electric field, changing from a horizontal spiral state to a vertical state, so that the polarization direction of the light cannot be rotated, and the light is blocked by the second polarizer, forming a dark state. By controlling the voltage of each pixel, the gray scale and color display can be realized.

什麼是IPS液晶螢幕？

In the IPS panel, the liquid crystal molecules are always parallel to the glass substrate. By applying a transverse electric field, they rotate within the plane. Different from TN LCD, the core of IPS LCD is the ‘in-plane switching’ of liquid crystal molecules: under the condition of no electric field, the liquid crystal molecules are arranged parallel to the glass substrate, and the direction of all liquid crystal molecules is consistent. When an electric field is applied, the liquid crystal molecules rotate in the same plane under the action of the horizontal electric field, without changing their vertical position, so as to adjust the transmittance of light. This unique arrangement mode makes IPS LCD have obvious advantages in viewing angle and color reproduction.

TN液晶屏及IPS液晶屏核心參數

如何選擇TN液晶螢幕還是IPS液晶螢幕？

不同的應用情境對顯示效能有不同的要求，這是選擇TN液晶螢幕和IPS液晶螢幕的核心依據。

TN液晶螢幕適用場景： High-speed dynamic display scenarios, such as competitive e-sports monitors, industrial camera viewfinders, high-speed detection equipment, and plasma cutting machine HMI. These scenarios require ultra-fast response speed (within 5ms) to avoid afterimages and smearing, and TN LCD’s fast response advantage can be fully exerted. JDA’s TN LCD products with low-temperature adaptive technology can operate stably in the range of -40℃~+85℃, which is more suitable for these scenarios.

IPS液晶螢幕適合的場景：多角度觀看場景，如電視螢幕、會議顯示器、汽車中控顯示器、平板電腦、公共資訊顯示器等。這些場景要求從任何角度都能清楚地看到畫面，而IPS LCD的178°超廣視角可以滿足這項需求。

晶達顯示器是一家專業生產LCD顯示器、TFT顯示器和OLED顯示器的製造商。如果您正在為您的專案尋找顯示屏，請訪問我們的官方網站：www.jda-display.com
