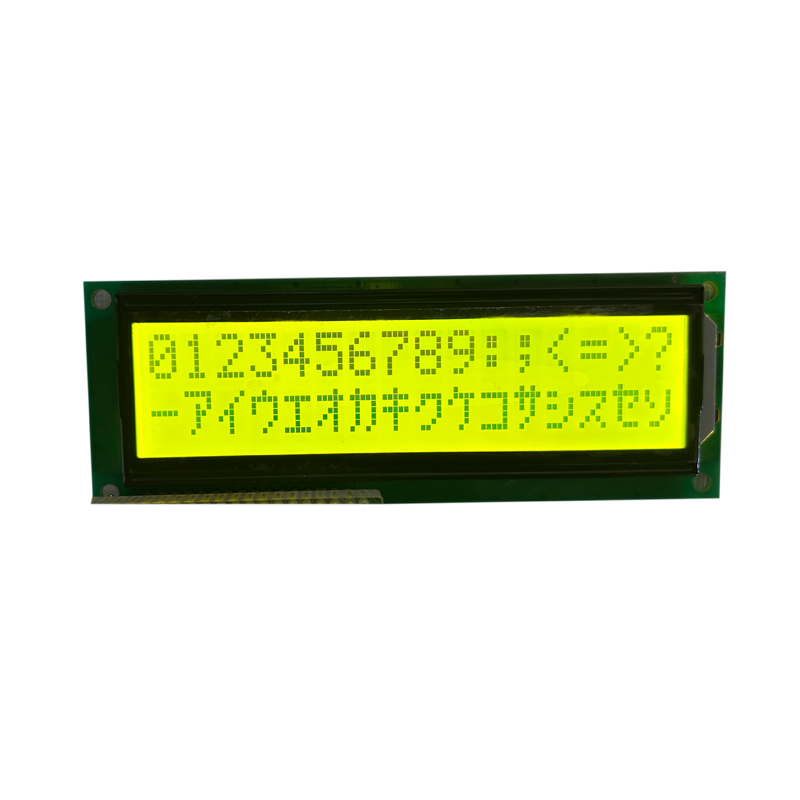

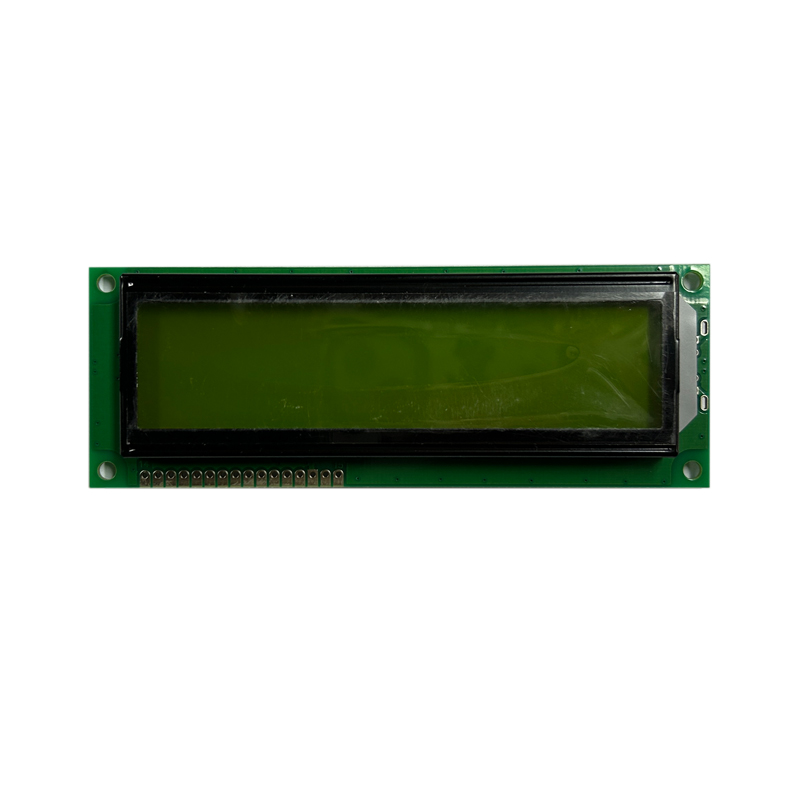

16x2 字元 LCD 黃綠模組

Jingda display’s 16x2 character LCD display is a highly versatile and reliable display solution, offering four lines with twenty characters each. The 16x2 character LCD display yellow green module remains a trusted workhorse. This module combines clarity, low power consumption, and straightforward parallel interface, making it suitable for countless industrial, medical, and consumer projects.
模組編號：JDA1602-10
技術：COB技術
工作環境：寬溫運行
視角：廣視角

發送詢問

產品描述

16x2字元液晶顯示黃綠模組產品參數

外形尺寸	122（寬）x44（長）x13.5（高）毫米	觀賞區	99.00(寬)x24.00(長)mm
活動區域	94.80(寬)x19.90(長)mm	字元尺寸	4.80（寬）x7.95（長）毫米
字元間距	6.00(寬)x8.55(長)mm	點距	1.15(寬)x0.98(長)毫米
觀看方向	6點鐘	介面	4/8 位元並行
驅動IC	AIP31066L-001/002	工作溫度	-20至70℃

產品介紹

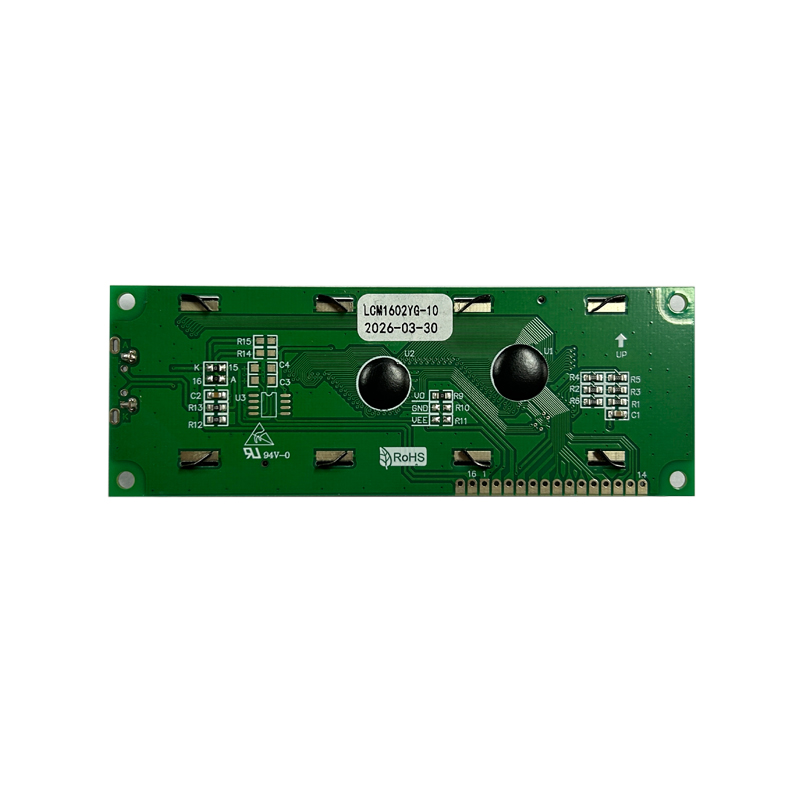

The display offers two lines of 16 characters each, with a 5x8 dot matrix per character. The yellow green background paired with dark black pixels provides excellent contrast under typical indoor lighting. Operating voltage ranges from 4.5V to 5.5V DC, with an LED backlight current around 100-120mA. The drive IC of 1602 display module is AIP31066L-001/002, and interface is 4/8-bit Parallel.

16x2 字元 LCD 黃綠顯示模組是一款多功能、可靠的字母數字顯示解決方案，旨在滿足工業和業餘電子專案的需求。該模組採用 16 個字元 x 2 行格式，具有明亮的黃綠色背光和 STN Y-G 正傳輸模式，可在各種照明條件下（從明亮的工業環境到低光工作空間）提供清晰、易於閱讀的文本，使其成為能見度至關重要的應用的理想選擇。

常見應用

工業控制面板- 顯示機器狀態、計數器或警報訊息。

醫療器材- 顯示病患資料或裝置設定。

家庭自動化- 提供恆溫器、計時器或安全系統的回饋。

測試設備- 萬用電表、頻率計數器和電源。

零售 POS 系統- 價格檢查器或收銀台顯示器。
