什麼是嵌入式工業多合一設備？

In fields such as industrial automation, intelligent equipment manufacturing, and edge computing of the Internet of Things, traditional split-type industrial control devices have long been unable to meet the requirements of modern, integrated, and compact equipment design. In the past, industrial sites commonly adopted a combination scheme of 'industrial control host+ independent display+external accessories', which had complicated equipment wiring, occupied a large amount of space, had poor stability, and had extremely high maintenance costs in the future. With the iterative upgrading of industrial hardware technology, industrial all-in-one machines gradually replaced traditional split devices and became the core hardware for industrial intelligent transformation. And 嵌入式一體化設備作為工業一體機的主流子品類，憑藉著整合整合、高適應性、高穩定性的核心優勢，被廣泛應用於各種惡劣的工業場景。

什麼是工業一體機？

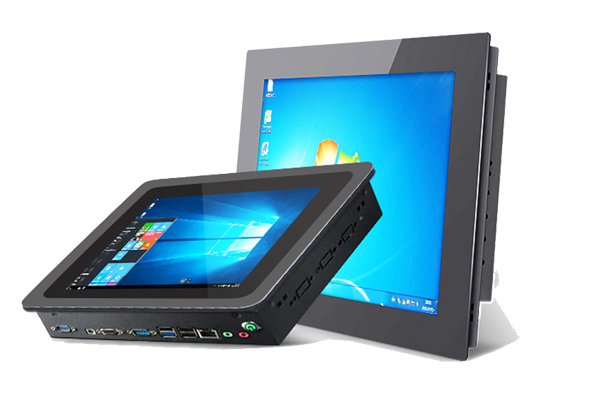

嵌入式工業一體機 are integrated intelligent touch terminals specifically designed for complex industrial working conditions. They belong to the core category of industrial all-in-one machines and are closed integrated devices that combine industrial-grade LCD display modules, touch interaction units, embedded main control motherboards, storage modules, industrial I/O interfaces, and passive cooling systems. Unlike civilian all-in-one machines and ordinary commercial touch devices, this equipment completely eliminates redundant structures and adopts a standardized embedded installation architecture. It does not require external hosts, displays, keyboards, and mice, and can independently complete the entire process of data acquisition, equipment control, human-computer interaction, edge data computing, signal transmission, etc. It is a dedicated embedded intelligent terminal device for industrial scenarios.

From the perspective of structural design, the embedded industrial all-in-one PC adopts the industry-standard installation mode of back-mounted and front-panel exposed. The machine body is thin and compact, and can be directly embedded into the equipment cabinet, the panel of the automated equipment, or the interior of the intelligent terminal housing. After installation, the screen panel is flush with the surface of the equipment, without any protruding structure. This not only ensures the overall integration and aesthetic appearance of the equipment, but also significantly improves the sealing performance and space utilization of the equipment.

The embedded all-in-one machine is a specifically optimized integrated model, with its core advantages focusing on "embedded adaptation, sealed stability, and minimalist integration". The entire machine adopts a fully enclosed, hole-free body. The front panel generally meets the IP65 level of dustproof, waterproof, and oil-resistant standards, and can directly withstand splashing water, dust accumulation, and oil erosion in industrial environments. There are no external cooling components or extra interfaces on the body. All lines and hardware are integrated within the body, and its anti-vibration and anti-electromagnetic interference performance far exceeds that of ordinary industrial all-in-one machines. At the same time, the embedded all-in-one machine does not require a separate placement space. It can deeply integrate into various automation equipment, intelligent terminals, and cabinet systems, making the equipment more streamlined and with a higher degree of integration, fully adapting to the design trend of modern intelligent equipment.

嵌入式工業一體機的核心結構及技術特點

The core advantages of the embedded industrial all-in-one machine stem from its specialized and industrialized structural design and technical configuration. Its core features are concentrated in four dimensions: protection capability, heat dissipation design, hardware integration, and environmental adaptability. These are the core supports that enable it to operate stably and continuously in industrial environments.

1.全封閉工業級防護結構

The entire embedded all-in-one machine adopts an aluminum alloy integrated die-casting for the body, featuring a sturdy structure, resistance to wear and tear, and impact resistance. It is suitable for industrial equipment operating in environments with frequent vibrations and mechanical impacts. The body has no ventilation holes or exposed gaps, achieving a completely enclosed structure. This prevents dust, moisture, and oil from entering the internal components, effectively protecting the mainboard, display module, touch layer, and other core hardware.

2. 無風扇被動冷卻系統

Unlike the fan-driven cooling method used in traditional industrial control equipment, the embedded industrial all-in-one machine adopts a passive cooling technology that utilizes the overall heat conduction of the metal body. Through a high thermal conductivity aluminum alloy body, the heat generated by the hardware operation is quickly conducted and dispersed. This design not only completely eliminates the risks of dust accumulation, noise, and equipment failure and downtime caused by fans, but also significantly reduces the power consumption and operation and maintenance costs of the equipment. The device can operate continuously without interruption for 7×24 hours, with an average fault-free operation duration of up to tens of thousands of hours, fully meeting the needs of all-day operation in industrial production.

3.寬溫、寬壓範圍內穩定運行

Civilian touch control devices and ordinary commercial all-in-one machines can only operate in normal temperature environments. However, embedded industrial all-in-one machines have been optimized for extreme temperature conditions in industrial settings, supporting operation in an ultra-wide temperature range of -20℃ to 70℃. They can be adapted to low-temperature outdoor conditions in the north, high-temperature production environments in workshops, and high-temperature scenarios inside enclosed equipment. At the same time, the equipment supports wide voltage input, which is suitable for voltage fluctuations and unstable power supply in industrial scenarios, effectively avoiding equipment restarts, crashes, and hardware damage caused by abnormal voltages, ensuring the continuity of industrial production and equipment operation.

4.豐富的工業級擴充接口

嵌入式一體機作為工業控制終端，配備了標準化、高度相容的工業I/O接口，包括RS232、RS485、乙太網路口、USB接口、GPIO接口等。这些接口可以快速连接PLC、传感器、变频器、扫描设备、数据采集模块等工业配件，实现以下功能：設備資料採集、訊號傳輸、設備聯動、遠端控制。

嵌入式工業一體機主要應用場景

嵌入式一體機已成為工業自動化、智慧裝備、物聯網終端的核心標準硬件，涵蓋絕大多數專業工業領域。也是目前所有工業一體機中應用最廣、市佔率最高的。

1.工業自動化生產線設備

在智慧製造管線、自動化分類設備、數控加工設備、機器人配套控制系統中，嵌入式工業一體機是核心的人機互動與控制終端。

2、智慧自助終端設備

各種工業級自助設備、智慧巡檢終端、倉儲物流終端一般都配備嵌入式一體機，包括智慧掃描設備、倉庫分類終端、設備巡檢終端、工業查詢終端等。

3.環境保護與智慧監控領域

在水質監測、廢氣監測、環境粉塵監測、能源監測等設備中，嵌入式工業一體機在資料擷取、資料分析、資料上傳、設備控制等方面發揮核心作用。

4.智慧交通及車輛工業設備

在工業車輛終端、交通監控櫃、智慧門禁系統、軌道運輸輔助設備等場景中，對設備的抗振動、寬溫度適應、穩定性等提出了極高的要求。

如果您正在為您的專案尋找嵌入式工業多合一設備，請隨時聯絡 JDA 團隊，或造訪我們的網站：https://www.jda-display.com/
